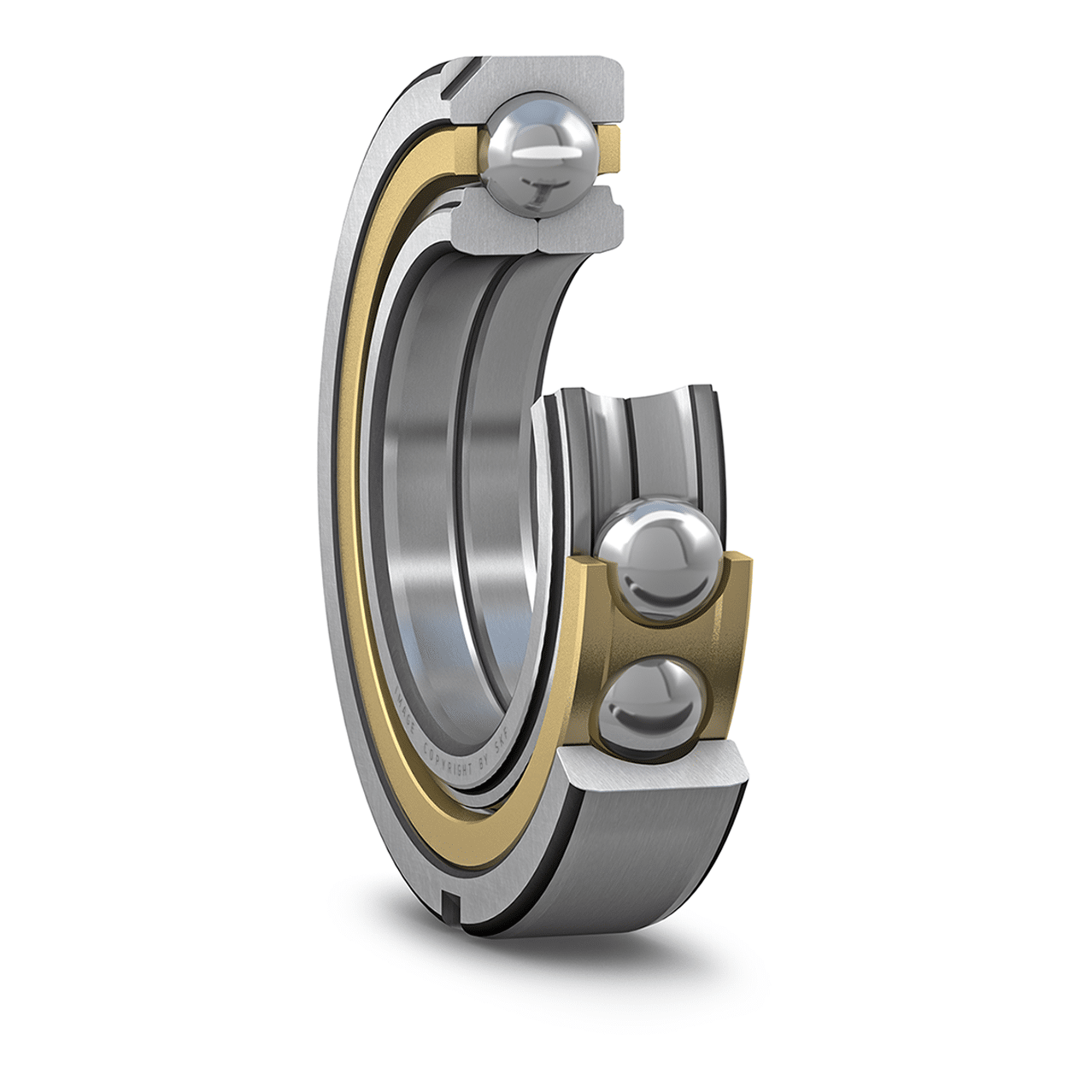

QJ 311 N2MA/C2L SKF

Specificaties

• Lubrication Unlubricated
• Accuracy Normal (PN)
• Cage material Brass
• Designation QJ 311 N2MA/C2L
• Boring diameter (mm) 55
• Buitendiameter (mm) 120
• Breedte (mm) 29
• Eenheden pc
• Gewicht (kg) 1.68
• Merk SKF
• Materiaal Bearing steel
• Aantal rijen 1
• Sealing Open
• Clearance C2L
• Locating Feature Locating slot
• Limiting Speed (r/min) 10000
• Dynamische belasting (C) 137
• Statische belasting (Co) 118
• Pack quantity 1
• EAN-code 07316570699593
• Status SKF Published Assortment
• Sealing type None
• Subcategory Angular contact bearings
• Subcategory Four point angular contact ball bearings
• Long description Four-point contact ball bearings with locating slots can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves. The locating slots can be used to prevent the outer ring from rotating.
• Benefits High-speed capability, Accommodate high axial loads in both directions and small radial loads, Require considerably less axial space than double row angular contact ball bearings, The locating slots can be used to prevent the outer ring from rotating
• Pack code PK12 Single package
• Pack gross weight (kg) 1.704
• Pack height (mm) 126
• Pack lenght (mm) 124
• Pack width (mm) 33
• Pack volume 515.592 cm³
• UNSPSCcode 31-17-15-38
• UNSPSCname Four point bearing
• eClass code 23-05-08-05
• eClass name Four-point contact ball bearing
• shortDescription Four-point contact ball bearing with locating slots
• ProductsPerPack 1
• Coating Without
• relubricationFeature Without
• matchedArrangement No
• performanceClass SKF Explorer
• SEOattribute QJ311N2MAC2L
