3218-M FAG

Specificaties

• Materiaal Bearing steel
• Aantal rijen 2
• Lubrication Unlubricated
• Sealing Open
• Clearance CN (Normal)
• Accuracy Normal (PN)
• Cage material Brass
• Locating Feature Without
• Designation 3218-M
• Boring diameter (mm) 90
• Buitendiameter (mm) 160
• Breedte (mm) 52.4
• Eenheden pc
• Gewicht (kg) 4.229

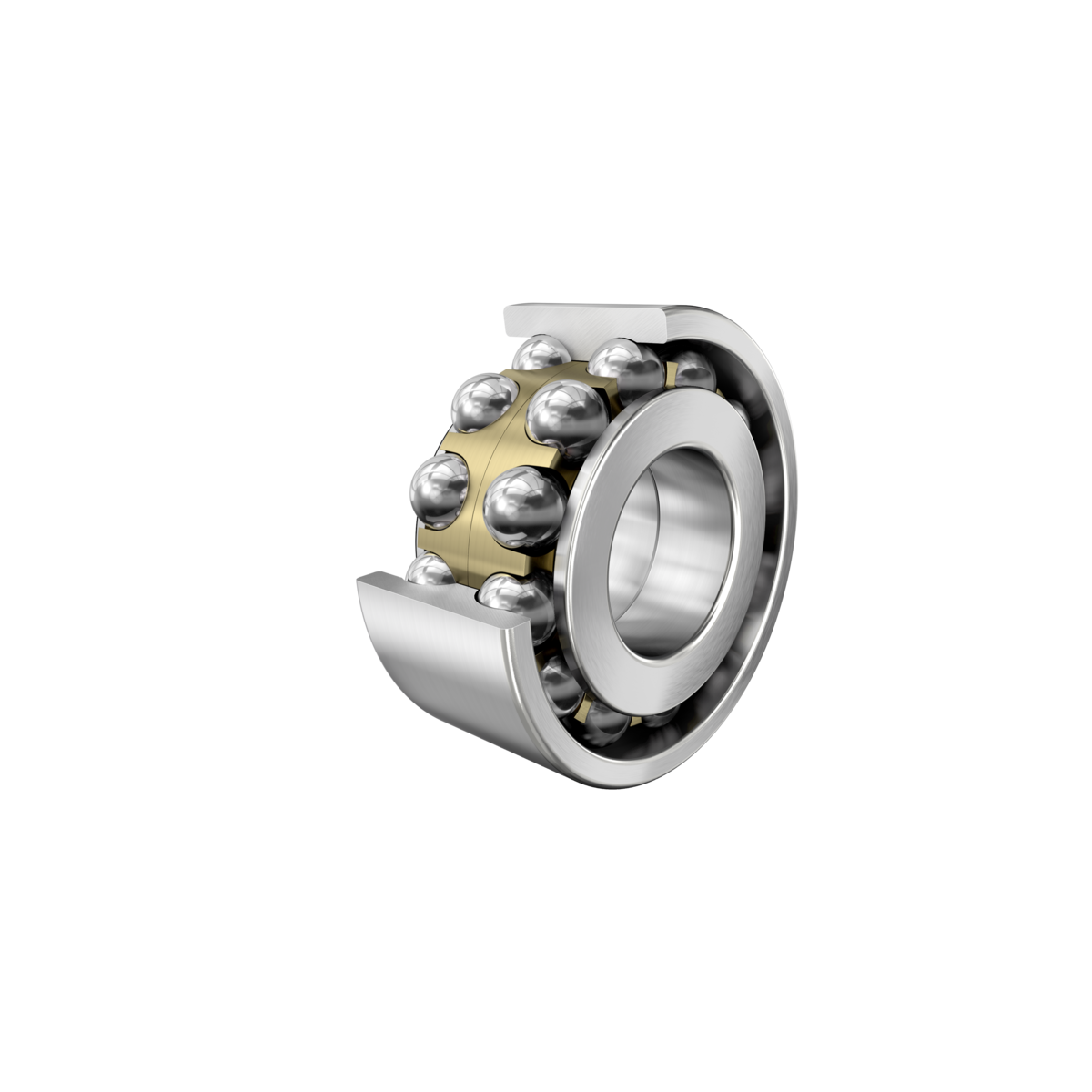

• Omschrijving (EN) Angular contact ball bearing 32..-M, double row, with filling slot, solid brass cage
• EAN-code 4012801271141
• Status Schaeffler Published Assortment
• Sealing type None
• Subcategory Angular contact bearings
• Subcategory Double row angular contact ball bearings
• SEOattribute 3218M
• Merk FAG
