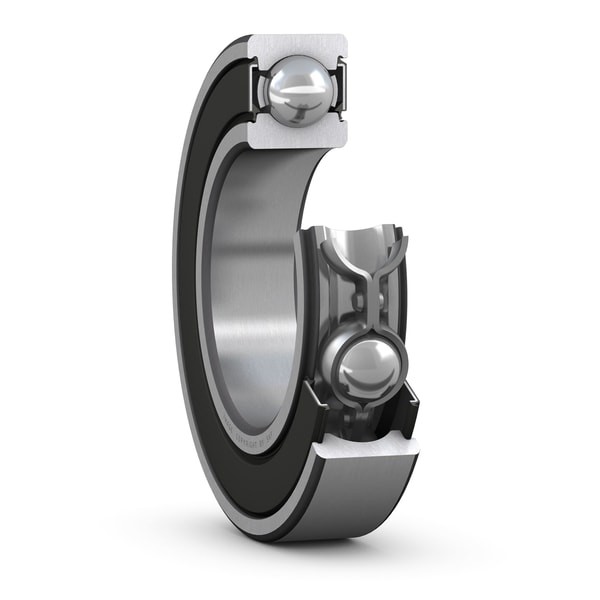

6003-2RSH SKF

Specificaties

• Materiaal Bearing steel
• Aantal rijen 1
• Lubrication Grease
• Sealing Seal on both sides
• Clearance CN (Normal)
• Accuracy Normal (PN)
• Cage material Steel
• Ring material Steel
• Rolling element material Steel
• Locating Feature Without
• Designation 6003-2RSH
• Boring diameter (mm) 17
• Buitendiameter (mm) 35
• Breedte (mm) 10
• Mass bearing (kg) 0.038
• Limiting Speed (r/min) 13000
• Eenheden pc
• Dynamische belasting (C) 6.37
• Statische belasting (Co) 3.25
• Gewicht (kg) 0.04
• Pack quantity 1
• Bore Type Cylindrical
• EAN-code 07316571815268
• Status SKF Published Assortment
• Sealing type Contact
• Subcategory Deep groove ball bearings
• Subcategory Single row deep groove ball bearings
• Long description Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
• Benefits Integral sealing prolongs bearing service life, Simple, versatile and robust design, Low friction and high-speed capability, Accommodate radial and axial loads in both directions, Require little maintenance
• Pack code PK12 Single package
• Pack gross weight (kg) 0.042
• Pack height (mm) 47
• Pack lenght (mm) 45
• Pack width (mm) 17
• Pack volume 35.955 cm³
• UNSPSCcode 31-17-15-04
• UNSPSCname Ball bearings
• eClass code 23-05-08-01
• eClass name Deep groove ball bearing
• shortDescription Deep groove ball bearing with seals
• ProductsPerPack 1
• Coating Without
• relubricationFeature Without
• matchedArrangement No
• fillingSlots Without
• performanceClass SKF Explorer
• SEOattribute 60032RSH
• Merk SKF
